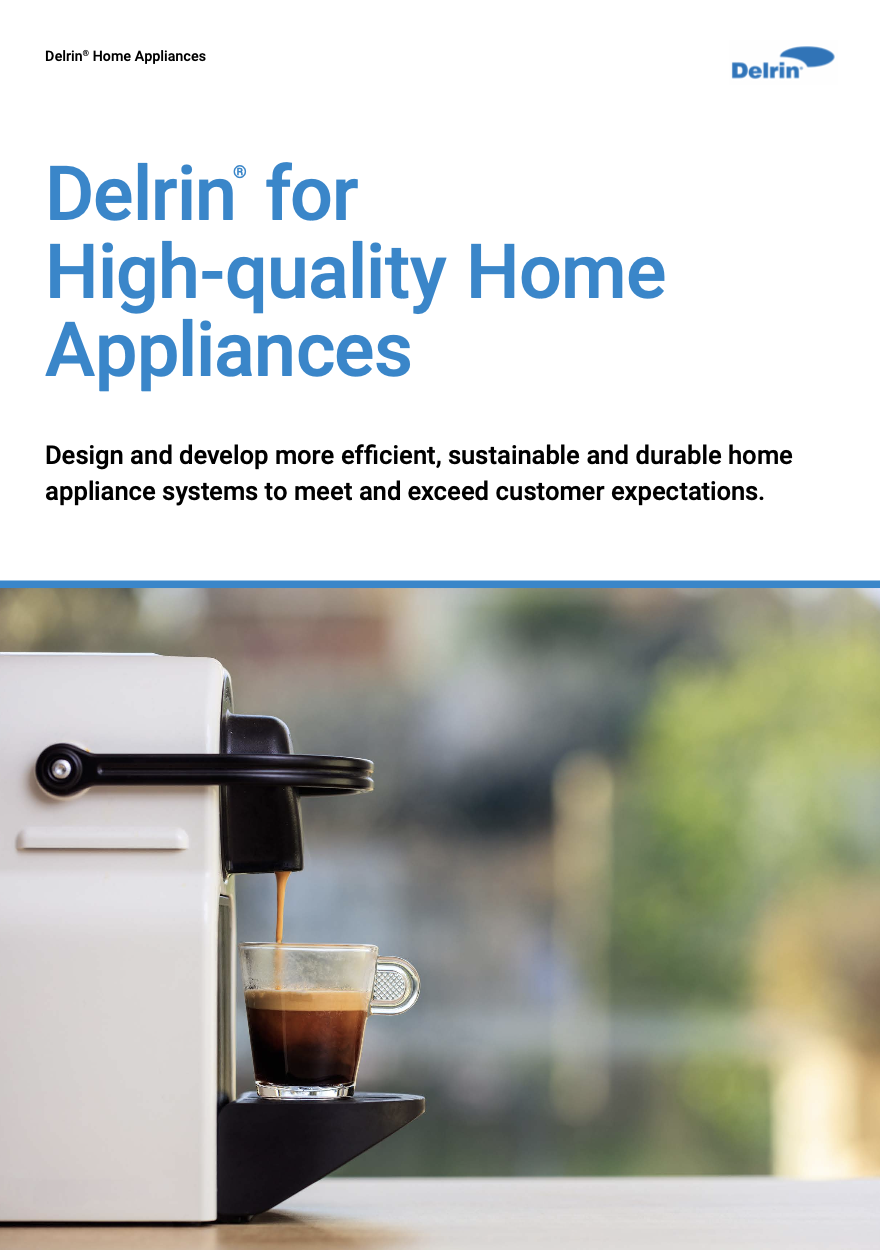

Delrin® Home Appliances
Delrin for
High-quality Home
Appliances
®
Design and develop more efficient, sustainable and durable home
appliance systems to meet and exceed customer expectations.
Delrin® Home Appliances
Delrin Polymers Enable Smarter
Home Appliance Solutions
®
From longer-lasting gears in coffee
machines to robust components in major
appliances and vacuum cleaners, you
can count on Delrin to support your next
design challenge and product launch.
Delrin® acetal homopolymer—with its balance of strength,
lubricity and toughness—is a key component in innovative
home appliance systems.
Working with Delrin can give your products an extra
competitive edge and offer advantages that customers
want and need. Key performance benefits include:
• Lighter weight
• Wide operative temperature range (-30°C
to 90°C)
• Self-lubrication and wear resistance
• Reduced vibration and noise
• Lower molding costs
• Excellent dimensional stability for precision
components
Modulus and tensile strength comparison
3.5
Modulus, GPa
Tensile strength, MPa
3.0
Modulus, GPa
2.0
1.5
1.0
0.5
0.0
Tensile strength, MPa
2.5
PP
PA66
PC
PBT
Delrin®
Source: DuPont
Delrin® Home Appliances
Superior Design Flexibility
and Performance
Delrin® behaves more like metal than other unreinforced
plastics thanks to its very high crystallinity. It’s the first
choice for designers seeking:
Fatigue loading assessment of Delrin versus acetal
copolymer
12,000
• Long-lasting mechanical performance
9,700,000
10,000
Cycles to failure, 1000s
• Strength and rigidity without glass reinforcement
• Excellent molding characteristics
This balance is key to designing components that offer
maximum reliability, safety and manufacturability.
8,000
6,000
4,000
2,500,000
2,000
High molecular weight
acetal copolymer
Delrin® 100CPE
Test standard: ASTM D671 80°C, 220 kg/cm2, 30Hz
Source: DuPont
Door latches, hinges, and bearings
made with Delrin operate smoothly
and can significantly outlast
competitive materials, increase
safety factors and extend service
lives of essential everyday products.
Delrin® Home Appliances
A Problem-solver for Reliable,
Long-lasting Moving Parts
Delrin® offers one of the lowest coefficients of friction,
wear rates and noise when compared with other
polymers. With a wide range of internally lubricated
grades, Delrin delivers better acoustics, minimal wear and
superior friction performance so dynamic systems, like
robotic vacuum cleaners, can keep running with ease.
Wear rate and noise reduction with Delrin® 500AL
1,600
1,000
In a dynamic assembly, Delrin parts
can move at higher speeds with greater
efficiency and minimal noise generation.
1,200
Delrin® 500P
Delrin® 500AL
Delrin against self
PV = 0.0524 MPa · m/s (V = 0.084 m/s)
Source: DuPont
Noise level, dB(A)
Specific wear rate, 10-6 mm 3/Nm
1,400
Delrin® Home Appliances
Assured Safety and Durability
in Food Contact
Delrin® food-contact-compliant grades meet industry
regulations.* For mechanical parts in food contact, Delrin
can survive repeated use in processing equipment
thanks to its superior strength and wear resistance.
Combined with low temperature toughness, Delrin can
also be used for components in ice making as well as
dispensing systems for cold drinks and ice cream.
Delrin resists stains and stands up to the harshest
cleaning agents, helping avoid premature failure from
aggressive chemical cleaning agents, including:
• 2.5% bleach solution
• Ethanol
• 3% peroxide solution
• Quaternary ammonium solution
• Clorox Healthcare®** Bleach Germicidal Cleaner
• Lysol®** Mold and Mildew Remover
• Sani-Cloth®** AF3 Germicidal Disposable Wipes
• Virex®** Tb Disinfectant Cleaner
When used with these cleaners, the tensile strength of
Delrin was greater than 80% retention after 96 hours of
exposure.
Source: DuPont
Combining strength and stiffness with
low moisture absorption, Delrin offers
robust and consistent performance for
food processing applications.
Compliant with FDA, EU10/2011 and GMP (EC) 2023/2006.
*
**
Clorox Healthcare®, Lysol®, Sani-Cloth® and Virex® are trademarks of
their respective companies.
Delrin® Home Appliances
Contributing to Your
Sustainability Journey
Improved eco-profile. Identical properties.
Sustainability is a global driving force. Today’s product
developers are working to reduce or eliminate negative
environmental impacts through thoughtful selection of
materials and designs. By working with Delrin® Renewable
Attributed (RA), significant reductions in carbon footprint
are achievable without compromising on performance.
Tensile modulus
The base polymer for Delrin®
RA is produced using 100%
bio-feedstock from waste
in accordance with ISCC
mass balance certification.
All Delrin® RA products
are manufactured with
100% certified renewable
electricity and offer up to a
75% lower carbon footprint
versus fossil-based Delrin.
Notched charpy
impact strength
(23ºC)
Tensile strength
at yield
Nominal strain
at break
Abiotic
depletion
potential
Global warming potential
Delrin® 100CPE
Delrin® RA100CPE Renewable Attributed
Source: DuPont
To reduce overall material usage, designers can take
advantage of the superior properties of Delrin to make
component sections thinner. Delrin also has the potential
(if and where infrastructure exists) to be 100% recycled to
support circularity initiatives.
Mechanical properties retention after five passes of
100% regrind
Property retention, %
Virgin resin
1st pass
Melt flow rate
Source: DuPont
2nd pass
3rd pass
Tensile modulus
4th pass
5th pass
Notched charpy impact
Delrin® Home Appliances
A Complete Portfolio
Specialty
Flow/moldability
Select from a wide variety of grades to gain extra advantages for
your product performance.
Portfolio category
General characteristics
Products*
100 series
High-viscosity
acetal homopolymer
For use in easy-to-fill molds (thick walls). Injection
moldable and exhibits sufficient melt strength for
extrusion. Best combination of strength, toughness,
and creep resistance without modification.
Delrin® FG150
Delrin® FG100P
Delrin® FG111P
Delrin® 100CPE
300 series
Medium-high-viscosity
acetal homopolymer
An outstanding balance of ease of processing and
mechanical performance.
Delrin® FG311DP
Delrin® 311DP
Delrin® 300CPE
500 series
Medium-viscosity
acetal homopolymer
General purpose with an optimum combination of flow
and mechanical properties.
Delrin® FG500P
Delrin® FG511DP
Delrin® 500CPE
900 series
Low-viscosity
acetal homopolymer
For multi-cavity and thin wall molding. Easy-filling resin
with slightly lower toughness than the 500 family.
Delrin® FG900P
Delrin® 900P
Low wear/low friction
Advanced lubrication designed for enhanced
tribological performance and low noise.
Delrin® 100AL
Delrin® 500AL
Delrin® FG500AL
Enhanced stiffness
For high heat deflection temperature, excellent creep
and fatigue resistance, and higher stiffness and
strength.
Delrin® 510GR
Delrin® 525GR
Delrin® 570
Impact modified
Toughened for impact resistance in highly stressed
parts. Useful for reducing noise, vibration and
harshness.
Delrin® 100ST
Delrin® 500T
Renewable Attributed
Produced using 100% bio-feedstock in accordance with
ISCC mass balance certification.
Delrin® RA100CPE
Delrin® RA500CPE
Delrin® RAFG500P
*Selected products for illustration purposes. Contact your Delrin representative for a full list of available grades.
FG denotes food contact grades with compliance to FDA, EU10/2011 and GMP (EC) 2023/2006.
Delrin® Home Appliances
Partnering on Your Next Project
With years of success in the development and design of
home appliances, Delrin® parts help create products that
delight customers.
By involving Delrin specialists as part of the design team,
you’ll have access to a wide variety of product grades as
well as a wealth of knowledge and resources, including:
• Worldwide support for polymer research and
development backed by more than 60 years of
experience and innovation in acetal homopolymers
• Computer-aided engineering tools and finite element
analysis to inform optimal part design and function
• Extensive experience in testing, materials selection,
and processing support to ensure optimal part
development for success in demanding applications
Customer applications of Delrin® acetal homopolymer
•
•
•
•
•
Air conditioners
Air purifiers
Coffee machines
Dishwashers
Drink dispensers
•
•
•
•
•
Fans
Food processors
Microwaves
Pepper grinders
Personal care items
•
•
•
•
•
Refrigerators
Robotic cleaning systems
Vacuum cleaners
Washing machines
Water softeners
To learn more, contact your Delrin representative or visit Delrin.com.
Delrin® is an industry-leading premium industrial polymer business. Grounded in strong innovation, Delrin is a category creator with a longstanding
reputation for quality, reliability, supply and product performance. The iconic Delrin brand, coupled with proprietary technology and deep application
expertise make us a leader in the high-end engineering polymer market. Delrin has exciting growth prospects from exposure to automation,
actuation, healthcare, mobility and consumer applications.
