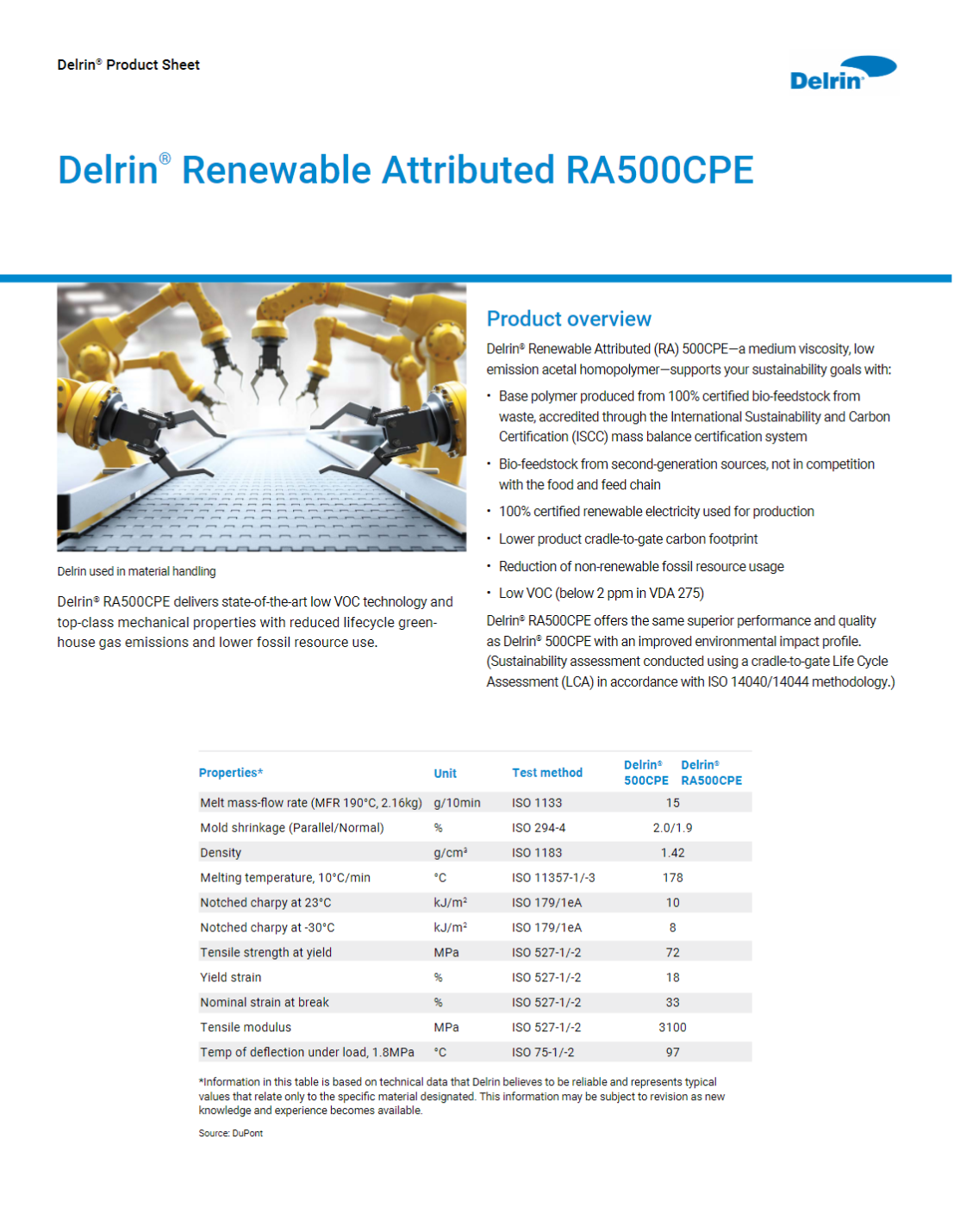

Delrin® Product Sheet
Delrin® Renewable Attributed RA500CPE
Product overview
Delrin® Renewable Attributed (RA) 500CPE—a medium viscosity, low
emission acetal homopolymer—supports your sustainability goals with:
• Base polymer produced from 100% certified bio-feedstock from
waste, accredited through the International Sustainability and Carbon
Certification (ISCC) mass balance certification system
• Bio-feedstock from second-generation sources, not in competition
with the food and feed chain
• 100% certified renewable electricity used for production
• Lower product cradle-to-gate carbon footprint
• Reduction of non-renewable fossil resource usage
Delrin used in material handling
• Low VOC (below 2 ppm in VDA 275)
Delrin® RA500CPE delivers state-of-the-art low VOC technology and
top-class mechanical properties with reduced lifecycle greenhouse gas emissions and lower fossil resource use.
Properties*
Delrin® RA500CPE offers the same superior performance and quality
as Delrin® 500CPE with an improved environmental impact profile.
(Sustainability assessment conducted using a cradle-to-gate Life Cycle
Assessment (LCA) in accordance with ISO 14040/14044 methodology.)
Test method
Unit
Delrin® Delrin®
500CPE RA500CPE
Melt mass-flow rate (MFR 190°C, 2.16kg) g/10min
ISO 1133
Mold shrinkage (Parallel/Normal)
%
ISO 294-4
2.0/1.9
Density
g/cm
ISO 1183
1.42
Melting temperature, 10°C/min
°C
Notched charpy at 23°C
ISO 11357-1/-3
kJ/m
ISO 179/1eA
Notched charpy at -30°C
kJ/m
ISO 179/1eA
Tensile strength at yield
MPa
ISO 527-1/-2
Yield strain
%
ISO 527-1/-2
Nominal strain at break
%
ISO 527-1/-2
Tensile modulus
MPa
ISO 527-1/-2
Temp of deflection under load, 1.8MPa
°C
ISO 75-1/-2
*Information in this table is based on technical data that Delrin believes to be reliable and represents typical
values that relate only to the specific material designated. This information may be subject to revision as new
knowledge and experience becomes available.
Source: DuPont
Enable sustainable design
Tensile modulus
100%
80%
Melt
mass-flow
Rate
Yield
strain
60%
40%
20%
Designing lighter parts with Delrin® RA500CPE saves energy,
resources and money.
0%
Notched
charpy
impact
strength
(23°C)
Yield
stress
Notched charpy
impact strength (-30°C)
Delrin® RA500CPE
Delrin® RA500CPE
Delrin® RA500CPE delivers superior performance compared to
competitive medium MW copolymers, as well as competitive
high MW copolymers. With higher tensile properties (+13%) and
increased impact resistance (+40%) achieved on a significantly
better flow, Delrin® RA500CPE enables the design of parts with
thinner walls while maintaining full functionality.
Typical MMW Copolymer
(-30°C)
Typical
MMW
Copolymer
Typical
HMW
Copolymer
Optimize your resource efficiency
The use of reground Delrin has almost no influence on
mechanical properties and molding performance. Five passes with
100% reground material are possible without any negative effects
on mechanical properties. Using Delrin helps increase your
internal recycling rate and achieves substantial environmental
and financial savings.
Reliable parts, made to last
Typical HMW Copolymer In addition to the ability to make durable parts at possibly higher
Source: DuPont
High performance
Delrin® Renewable Attributed RA500CPE outperforms both medium
and high molecular weight (MW) acetal copolymers,
enabling sustainable design.
production rates, when you work with Delrin you can count on
consistent quality and supply stability. Plus, our design, technical
and processing support helps you produce high-quality parts that
deliver on their promise.
By optimizing part design, Delrin® RA enables environmental and
cost savings compared to medium MW copolymer alternatives.
Certified sustainability
Delrin® RA500CPE base polymer is produced using 100% bio-feedstock from waste, in accordance with mass balance principles.
A mass balance approach and chain of custody utilizes separate
bookkeeping from cradle to gate (feedstock to finished product)
and enables supply chain traceability. The Delrin® Renewable
Attributed manufacturing site and supply chain are accredited
through the globally-recognized International Sustainability and
Carbon Certification (ISCC) certification system.
Potentially
-12%
part weight
Potentially
-13%
hold pressure
time
CO2e per part
reduction
Cost
reduction
To learn more, contact your Delrin representative or visit Delrin.com.
Delrin® is an industry-leading premium industrial polymer business. Grounded in strong innovation, Delrin is a category creator with a longstanding
reputation for quality, reliability, supply and product performance. The iconic Delrin brand, coupled with proprietary technology and deep application
expertise make us a leader in the high-end engineering polymer market. Delrin has exciting growth prospects from exposure to automation, actuation,
healthcare, mobility and consumer applications.
Copyright 2023 Delrin®
Form No. HMC1223
